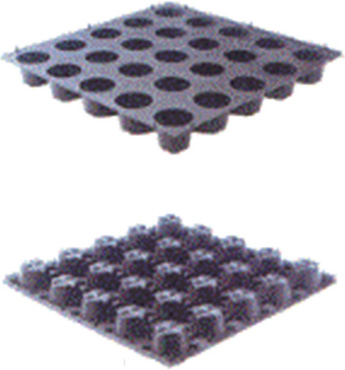

Drainage plate for basement floor

￭ Solve groundwater and water-resistant defects.
￭ Concrete filled structure provides excellent load carrying capacity.
￭ High durability means a permanent life.
￭ Construction is simple and economical.

Characteristics

Light weight makes it simple to build because of its simplicity.
It is designed to withstand heavy loads.
It is environmentally friendly because there is no need to repair of water leaks, condensation, etc.

Use

Underground structures, machine rooms, storage rooms, tunnels, subways, swimming pools, electric rooms, underground parking lots, bunkers, ammunition depots, etc.

Specification

Product	Hor	Ver	Height	Usage per ㎡	Compressed Load per ㎡	Amount of Fill-in Concrete (per ㎡)
30mm type	500mm	500mm	30mm	4pieces	183ton	0.0070㎡
45mm type	500mm	500mm	45mm	4pieces	195ton	0.0125㎡
70mm type	500mm	500mm	70mm	4pieces	189ton	0.0165㎡
120mm type	500mm	500mm	120mm	4pieces	113ton	0.0252㎡
